Vanessa Bathroom

Render of the bathroom with a glass shower, green tiles and arched mirrors
Client
Vanessa
Location
Porto Alegre, RS
Year
2026
Area
2.88 m²
Category
Residential
Designer
Ana Maria Leite

Fitted bathroom in Hípica, in Porto Alegre's South Zone, with green wall tiles, a terracotta arched niche and a slatted wall-hung vanity.

In 2.40 m by 1.20 m, everything was drawn to fit without feeling tight: the wall-hung vanity frees the floor, the sliding shower door in clear glass keeps the view open and the toilet sits between the two.

The marbled green of the shower contrasts with the white of the rest, and three arches, two of mirror and a terracotta niche with a shelf and towel rail, give the vanity wall height and character.

[01]From plan to render
[01] Residential · 2026

Vanessa Bathroom

PlanRender100%

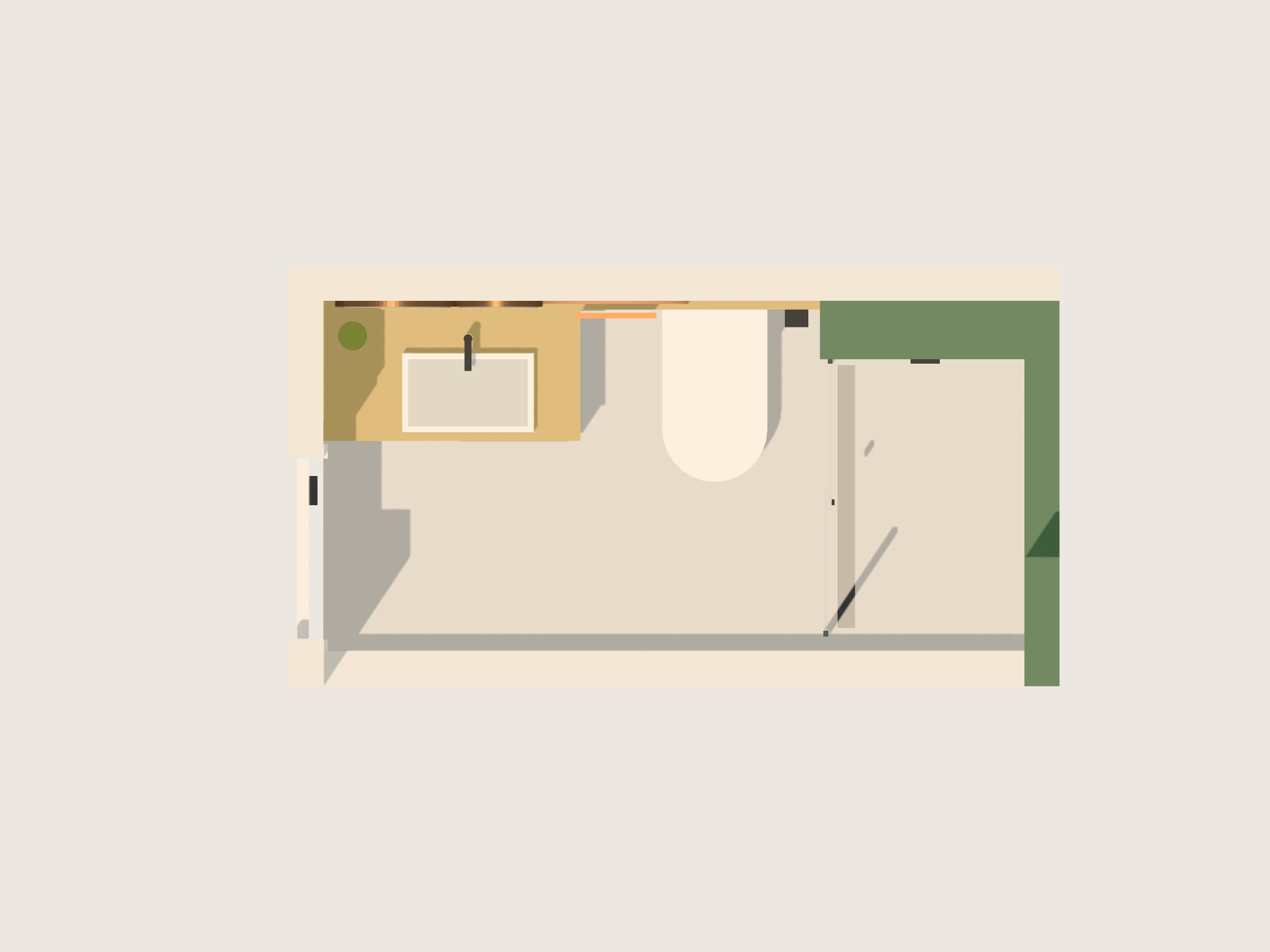

Top-down view of the bathroom's 3D model
ESC 1:502.88 m² · Porto Alegre, RS

Fitted bathroom in Hípica, in Porto Alegre's South Zone, with green wall tiles, a terracotta arched niche and a slatted wall-hung vanity.

[02]From line to perspective
[02] Residential · 2026

Vanessa Bathroom

PerspectiveRender100%

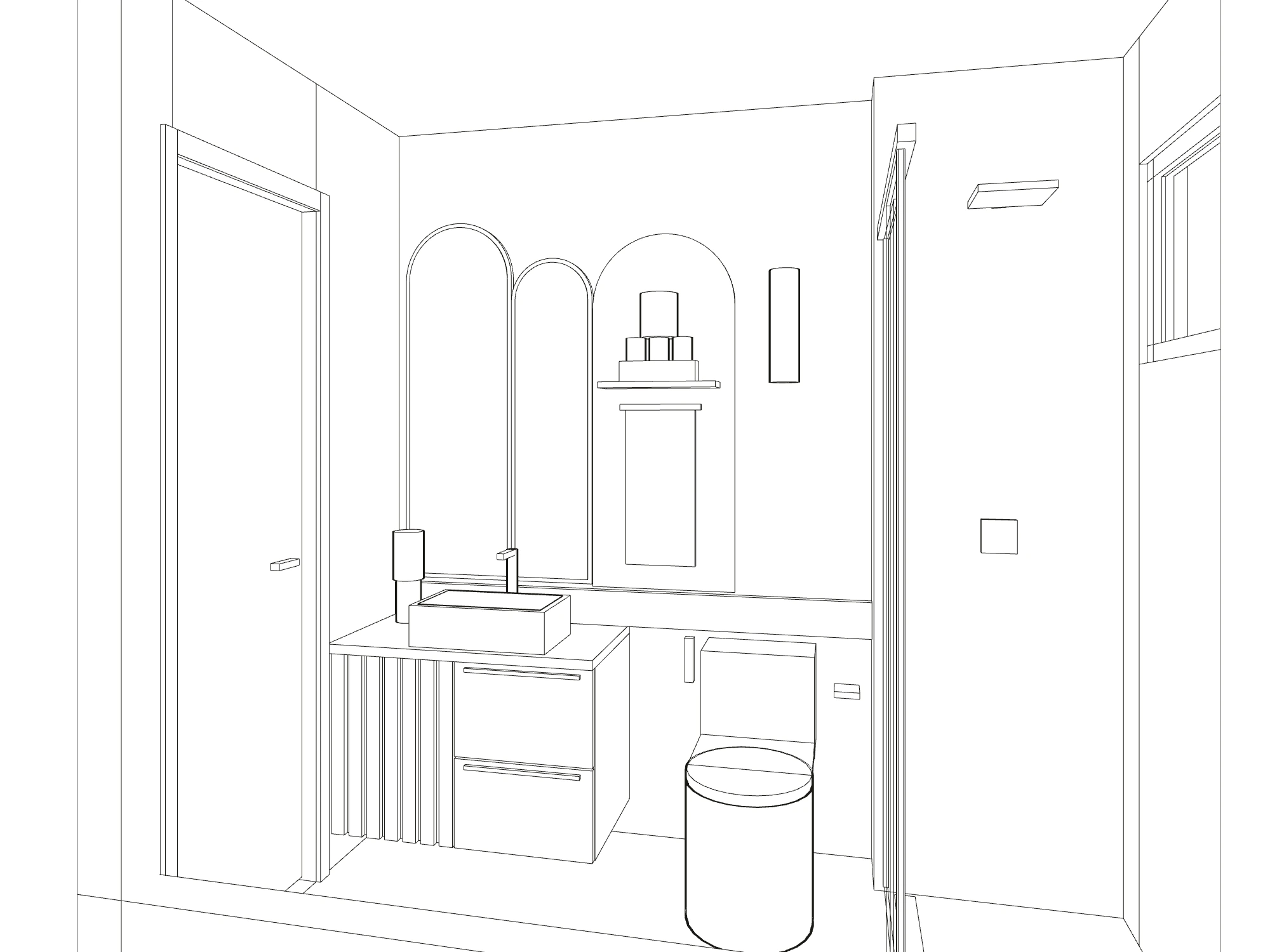

Line perspective of the bathroom, seen from the shower side
Perspective of the bathroom's 3D model
2-POINT PERSP.2.88 m² · Porto Alegre, RS

Fitted bathroom in Hípica, in Porto Alegre's South Zone, with green wall tiles, a terracotta arched niche and a slatted wall-hung vanity.

[03]Project sheets
01

Floor plan

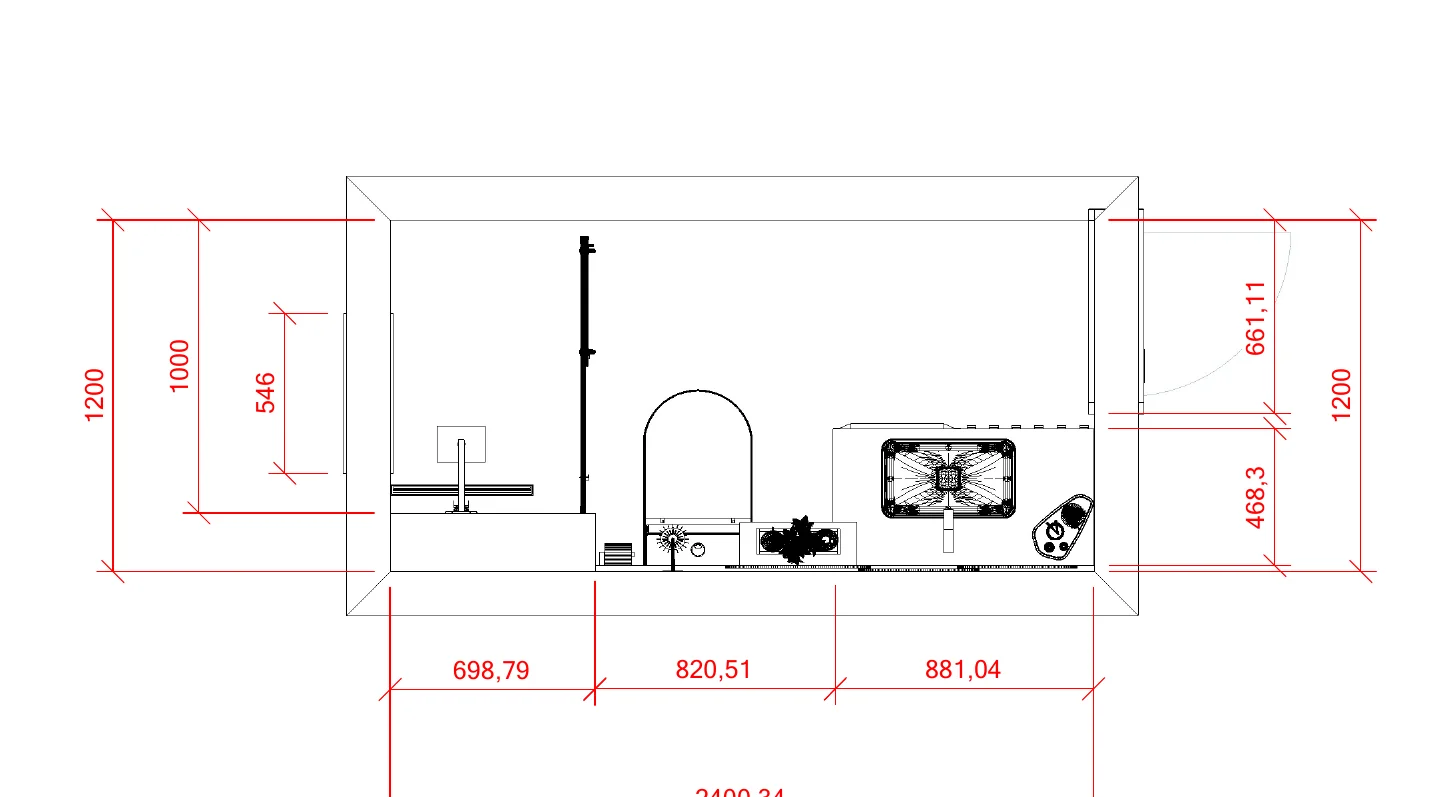

Dimensioned floor plan of the bathroomSheet
Top-down render of the bathroomRender
2.40 m by 1.20 m: the shower takes the far end, the toilet sits in the middle and the wall-hung vanity by the door keeps the floor clear.
02

Elevation

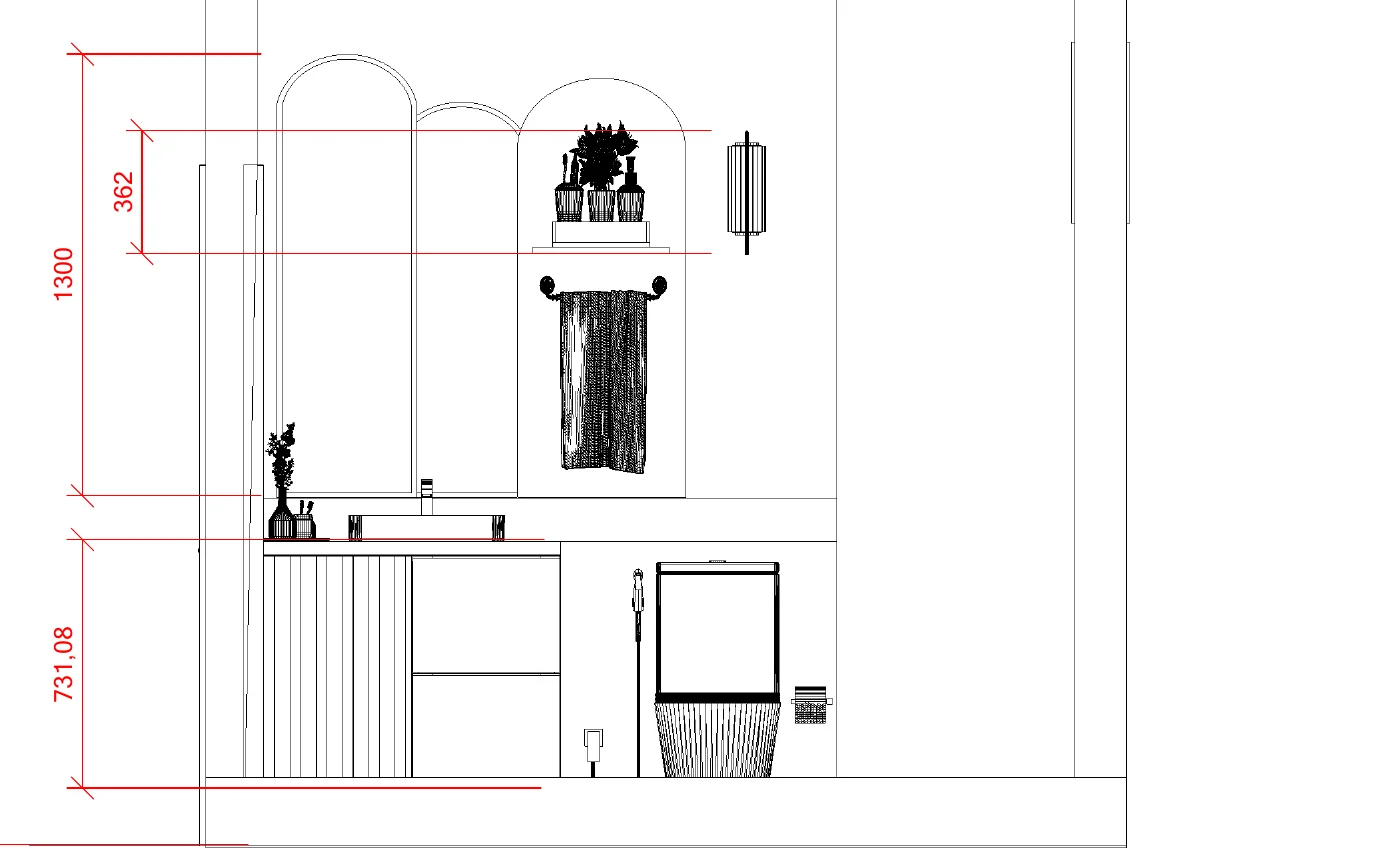

Dimensioned elevation of the vanity wallSheet
Render of the vanity wall, with arched mirrors and a terracotta nicheRender
A 2.50 m ceiling. The arched mirrors rise 1.30 m above the countertop, and the niche with a shelf holds the towel rail.
03

Perspective

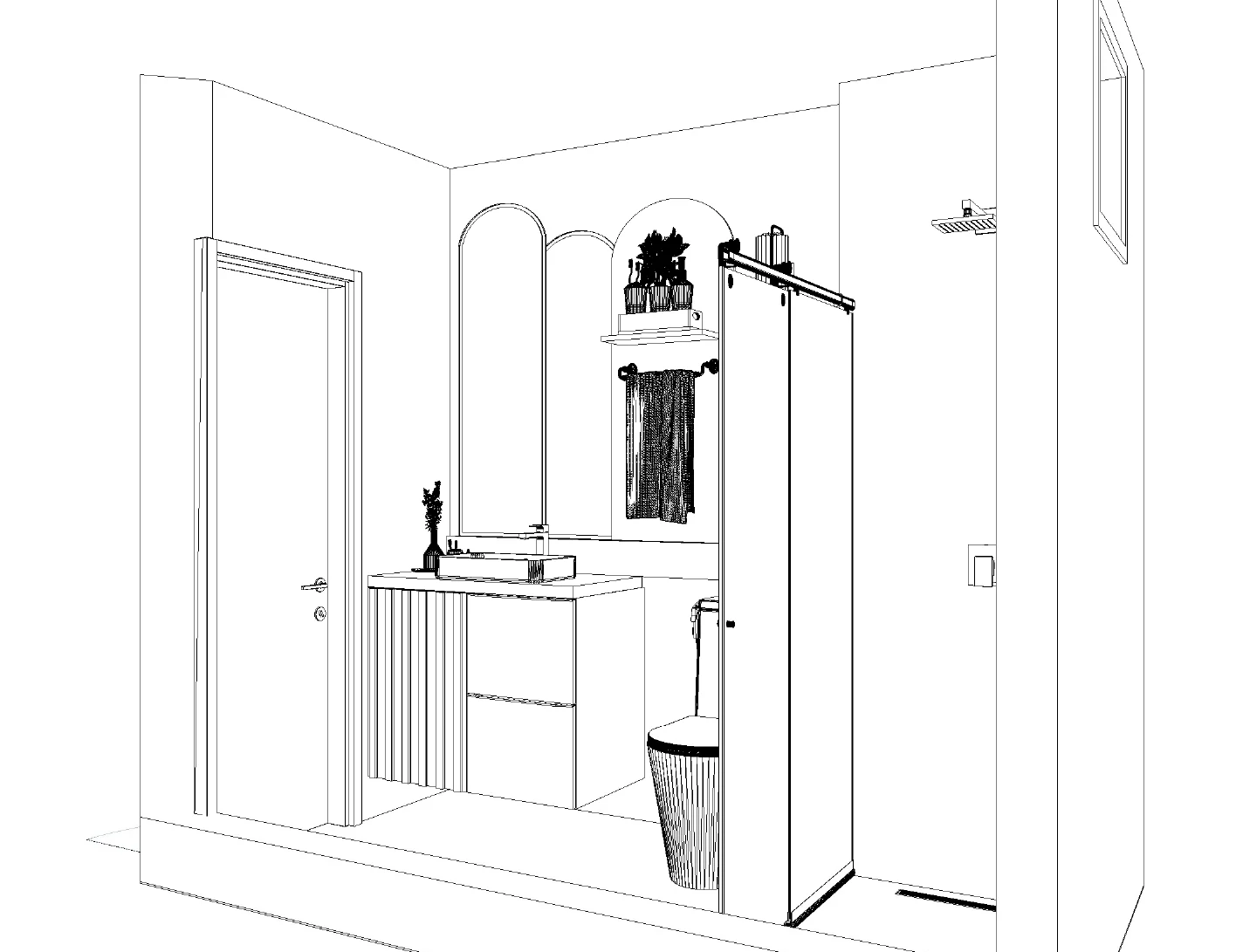

Line perspective of the bathroom, seen from the doorSheet
Render of the bathroom with a glass shower and green tilesRender
From the door, the slatted vanity comes first, and the sliding glass shower closes the view without hiding it.
[04]From sketch to 3D model
100%

3D model
2.88 m² · Porto Alegre, RS
[05]Materials and palette
Select a swatch
[01] #4F7A52

Marbled green tile

Shower wall

A strong colour on a single wall, which deepens the bathroom.

[06]From line to reality
Perspective of the bathroom's 3D model
Line perspective of the bathroom, seen from the shower side
LineRender
Drag to compare
